6L80 6L90 TRANSMISSION 4-5-6 CLUTCH APPLY PISTON KIT H.D. BY SONNAX FITS '06+ GM 6-SPEED

SKU:
S104960AK
Condition:
New
Availability:
Usually Ships in 24 Hours
Sale
$208.88 $179.77
$239.99
(You save $60.22 )
(No reviews yet) Write a Review

6L80

6L90

'06+ GM 6-SPEED AUTOMATIC TRANSMISSIONS:

4-5-6 CLUTCH APPLY PISTON KIT

  • HEAVY DUTY
  • SONNAX 104960-01K





  • FITS THESE '06+ 6L80 AND 6L90 EQUIPPED GM MODELS:
  • CADILLAC CTS '07-'09 6.0L (6L80)
  • CADILLAC CTS '08-'14 6.2L (6L90)
  • CADILLAC ESCALADE/ESV/EXT '06-'14 6.2L (6L80)
  • CADILLAC STS '06-'11 4.4L (6L80)
  • CADILLAC XLR/XLR-V '06-'09 4.4L 4.6L (6L80)
  • CHEVY AVALANCHE '08-'13 5.3L 6.0L (6L80)
  • CHEVY CAMARO '12-'14 6.2L (6L90)
  • CHEVY CAMARO SS '09-'14 6.2L (6L80)
  • CHEVY CORVETTE '06-'14 (6L80)
  • CHEVY & GMC EXPRESS & SAVANA VANS '12-'14 4.8L 5.3L 6.0L 6.6L (6L80 6L90)
  • HUMMER H2 '06-'10 (6L80)
  • HUMMER H3 '08-'11 5.3L (6L80)
  • GMC SIERRA DENALI '08 6.2L (6L80)
  • CHEVY SILVERADO 1500 & GMC SIERRA 1500 '08-'14 (6L80)
  • CHEVY SILVERADO 2500, 2500HD, 3500 '07-'14 6.0L 6.2L (6L90)
  • GMC SIERRA 2500, 2500HD, 3500 '07-'14 6.0L 6.2L (6L90)
  • SUBURBAN 1500 '09-'14 5.3L 6.0L (6L80)
  • SUBURBAN 2500 '06-'13 6.0L (6L90)
  • TAHOE '06-'14 5.3L 6.2L (6L80)
  • VAN FULL SIZE 2500 '09-'11 4.8L 5.3L (6L80)
  • VAN FULL SIZE 3500 '10-'11 (6L90)
  • YUKON XL '06-'14 6.0L (6L90)
  • YUKON & YUKON XL '09-'14 5.3L 6.0L 6.2L (6L80)
  • HOLDEN CAPRICE '12-'14 3.6L 6.0L (6L80)
  • HOLDEN COMMODORE '07-'14 3.0L 3.6L 6.0L 6.2L (6L80)



  • GM 6L80 and 6L90 transmissions often suffer failure of the 4-5-6 clutch assembly due to OE design shortcomings. Insufficient clutch piston-to-plate apply surface area causes clutch plate failure, especially when apply pressures exceed OE specifications. The other problem is flexing and bowing of the backing plate (coning), which is a primary source of clutch failure.
  • The heavy-duty Sonnax 4-5-6 clutch apply piston kit 104960-01K addresses these weak areas in two ways:

    1. A modified OE clutch apply piston and piston dam are used in conjunction with a specially-designed Sonnax piston apply ring.
    2. A more rigid backing plate.

    The Sonnax apply ring increases surface area between the apply piston and OE waved clutch plate, resulting in more even distribution of apply force to clutch plates. The Sonnax backing plate minimizes flexing/bowing when clutch is applied, drastically reducing the likelihood of clutch plate distortion.

    • Solid backing plate design outperforms OE and aftermarket plates
    • Increased apply ring surface area strengthens and reinforces assembly
  • KIT INCLUDES:
    • Apply Piston
    • Apply Ring
    • Piston Dam
    • Backing Plate

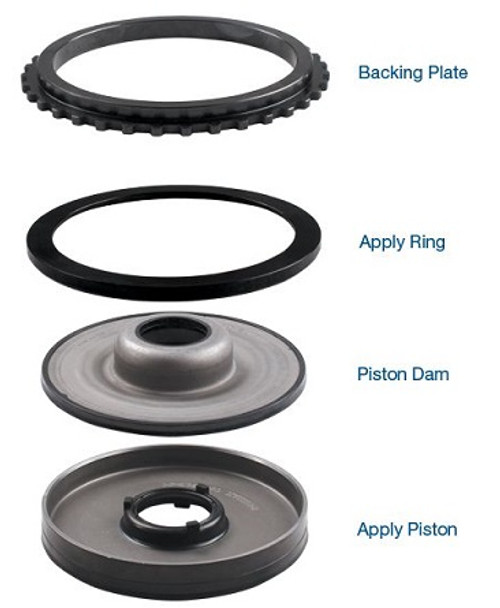

  • PHOTO SHOWS ACTUAL KIT
  • INSTALLATION INSTRUCTIONS INCLUDED
