FORD
5R110W
'03-'16 5-SPEED AUTOMATIC TRANSMISSION:
TORQUE CONVERTER
- MULTI-DISC
- LOCK-UP UNIT
- PRECISION RE-MANUFACTURED ORIGINAL EQUIPMENT
- 6-STUD MOUNT
- CODE: WW6
| TorqShift |
2003 - 2005 |
| 5R110W |
2004 - 2016 |
| Years | Vehicle | Drive Types |
|---|
| 2003 - 2004 |
Ford F-550 Super Duty |
4 X 4, 4 X 2 |
| 2003 - 2010 |
Ford F-350 Super Duty |
RWD, 4WD |
| 2003 - 2010 |
Ford F-250 Super Duty |
RWD, 4WD |
| 2003 - 2005 |
Ford Excursion |
RWD, 4WD |
| 2004 - 2016 |
Ford E-450 Super Duty |
4 X 2 |
| 2004 - 2016 |
Ford E-350 Super Duty |
RWD |
| 2004 - 2005 |
Ford E-350 Club Wagon |
RWD |
| Body Diameter Inches |
12.75 |
|---|
| Body Diameter mm |
323.9 |
|---|
| Hub Type |
Milled 2 Flats Stepped |
|---|
| Hub Internal Bushing |
No |
|---|
| Hub Seal Groove |
No |
|---|
| Number of Mounts |
6 |
|---|
| Mount Type |
Threaded Studs, Oval Pads |
|---|
| Mount Threads |
38 x 24 |
|---|
| Bolt Circle Inches |
11.375 |
|---|
| Pilot OD Major Inches |
1.375 |
|---|
| Pilot Type |
Straight |
|---|
| With Ring Gear |
No |
|---|
| Ring Gear Tooth Count |
0 |
|---|
| Cooling Shroud |
No |
|---|
| Billet Cover |
No |
|---|
| Pump Stall |
Low Stall |
|---|
| Turbine Internal Spline Count |
31 |
|---|
| Lock-Up Unit |
Yes |
|---|
- Multi-Disc
- Lock-Up
- 12.750" Overall Diameter
- 11.375" Bolt Pattern
- 6 Studs, 3/8 x 24 Thread
- Flats / Stepped Hub
- 1.375" Pilot Diameter
- 31 Spline,
- 1500-1700 Stall Speed
- Codes: WW6
- INCLUDES INDUSTRY LEADING 48-MONTH, 100,000 MILE RECON "TRUE BLUE" WARRANTY
- INCLUDES PRE-PAID RETURN SHIPPING LABEL FOR CORE
- $100 FULLY REFUNDABLE CORE CHARGE ADDED AT CART. $100 CORE CHARGE IS NOT INCLUDED IN THE PRICE UNTIL ADDED TO THE CART. SEE "CORE RETURNS" TAB FOR DETAILS

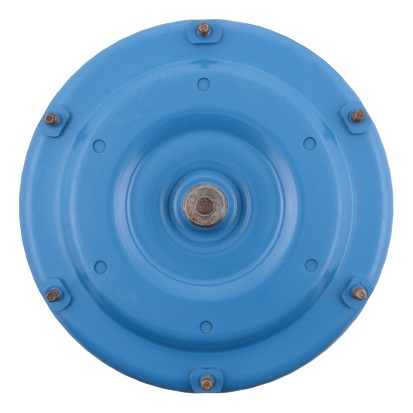

- PHOTOS SHOW ACTUAL TORQUE CONVERTER
- FREE SHIPPING TO ALL 50 U.S. STATES
- FITS 5R110W '03-'16:
- FORD WITH 6 STUDS
RECON™ Certified Torque Converters carry a limited Warranty of 48 months or 100,000 miles, whichever occurs first.
